Off-Grid Energy Monitoring and Controls

Power monitoring and controls for any battery connected solar system.

Features

Power monitoring for any type of battery setup.

Real-Time Data

Quickly understand current system conditions from anywhere

  • Battery Charge Level
  • Energy Production and Consumption
  • Estimated Runtime

Open System

Own your data. Data is stored locally on the monitor as well as on a removable memory card. Measurements stored every 5 seconds to the SD card providing lots of detail into system operation.

Historical Data

Monitor production and consumption data over time. Can be used to:

  • Identify system issues
  • Optimize the system for maximum production
  • Plan for expansions

Intelligent Controls

  • Reserve battery capacity when switching between grid and battery power
  • Run heavier loads only when production conditions are ideal
  • Harness excess power production with control of a 'dump' load
  • Conserve power in anticipation of weather events or planned maintenance

Technical Specifications

Please note - since the product is still in the design phase, these technical details may change. Please sign up for our mailer list, if we make changes we will keep you informed.

Operating Parameters

  • Operating Voltage: 9 - 70 Volts DC
  • Power Usage: <1 watt
  • Connectivity: Wifi 2.4ABG
  • Internal Storage: 10 Years of Hourly Data
  • External Storage: Memory Card Slot with support for FAT formatted microSD cards
  • Local Interface: Backlit LCD Screen and user interface for local configuration, live condition view, and basic historical data
  • Local Web Interface: A web interface is available across a local wifi network (no internet required) which provides graphing, detailed historical data, current conditions, and configuration options.
  • Cloud Interface: Future support for a cloud based interface, available by logging in via Rainy Day Energy from anywhere with internet access.
  • Custom Cloud Interface: Future support for uploading to a server of your choice. Specify the address, payload details, and update frequency.
  • Supported Battery Chemistries: Li-Ion, LifePO4, Lead Acid
  • Supports any energy source such as wind, solar, hydro, etc.
  • Two Programmable Outputs
    • Dump Loads
    • Grid / Off-Grid Switch
    • Output Above Configurable Battery Percentage
    • Output Below COnfigurable Battery Percentage

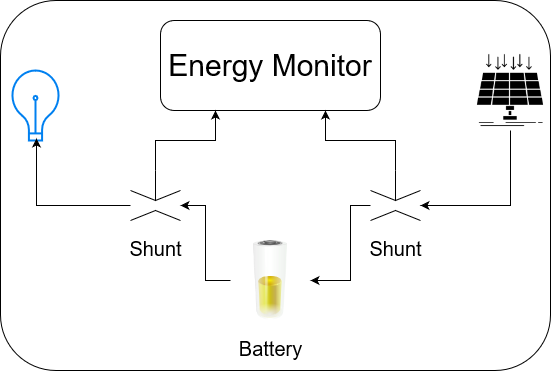

System Diagram

Frequently Asked Questions

  • When will the energy monitor be available?

    Development is active and ongoing. Please sign up to our email list using the Learn More link for detailed updates on each milestone.

  • Pricing is not completed at this time - however we are targeting the $150-$250 USD range at product launch. This number may change. We are looking at options to provide a lower cost version with fewer features.

  • Yes! We are actively building a list of Beta testers. Beta testers will receive hardware before the product launch and are integral in providing early feedback about the product.

    Want to be a Beta tester for the Eclipse Energy Meter?

    * indicates required

Learn More

Our Rainy Day Energy Monitor is still in development. If you are interested in the monitor, please join our email list. We will announce when we reach milestones along the way to a product launch.

Updates when the Eclipse Energy Meter reaches a milestone
